| soundstages | ||||||||
| name | feet width | length | height | ft² | cyclorama | specialised | tank | select |
|---|---|---|---|---|---|---|---|---|
| Stage 1 | 60 | 120 | 32 | 7,200 |
V
G
B
W
|
0 | ||
| Stage 2 | 60 | 120 | 32 | 7,200 |
V
G
B
W
|
0 | ||
| Stage 3 | 60 | 120 | 32 | 7,200 |
V
G
B
W
|
0 | ||
| Stage 4 | 100 | 200 | 40 | 20,000 |
V
G
B
W
|
1 | ||
| Stage 5 | 80 | 140 | 35 | 11,200 |
V
G
B
W
|
0 | ||
| Stage 6 | 80 | 140 | 35 | 11,200 |
V
G
B
W
|
0 | ||
| Stage 7 | 100 | 200 | 40 | 20,000 |
V
G
B
W
|
0 | ||
| Stage 8 | 100 | 150 | 40 | 15,000 |
V
G
B
W
|
0 | ||
| Stage 9 | 100 | 150 | 40 | 15,000 |
V
G
B
W
|
0 | ||

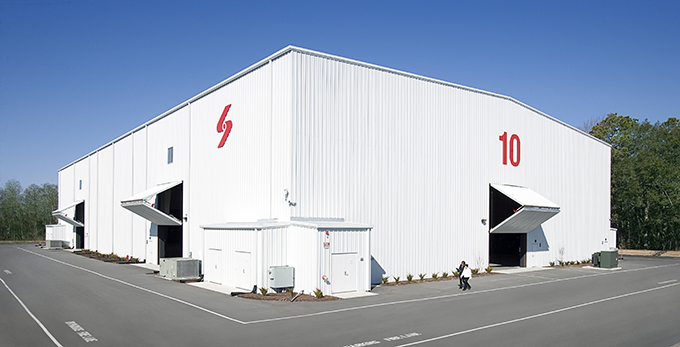

| Stage 10 | 150 | 250 | 40 | 37,500 |
V
G
B
W
|
1 | ||
| total | 151,500 | 2 | ||||||
| indoor tanks | deep tanks | |||||||
| for soundstage | feet width | length | depth | ft² | width | length | depth | ft² |
|---|---|---|---|---|---|---|---|---|
| Stage 4 | 24 | 39 | 4 | 936 | ||||
| Stage 10 | 50 | 50 | 11 | 2,500 | ||||
| total | 3,436 | n/a | ||||||
Disclaimer: for convenience, all dimensions are rounded up. Please refer to the floormaps, when available, for more precision
